TYPE :

202, 304, 304L, 304, 304H, 316, 316L, 316Ti, 321, 321H, 317, 317L, 310, 310S, 409, 410, 420, 430 etc.

OTHER :

• HYDRAULIC TUBE
• CAPILLARY TUBE
• HORN TUBE
• BOILER TUBE
• IBR TUBE
• PRECISION TUBE

Stainless Steel Structural's :

ASTM A 312, A 213, A 213, A 249, A 269, A 358, A 240, A 276

Carbon Steel Structural's :

ASTM A 106, A 53, API A 5L Gr A, B, C, ASTM A 333, Gr 1 to 6 (IBR & NON IBR)

Alloy Steel Structural's :

ASTM A 335, GR P1, P2, P5, P9, P11, P22, P91

Copper Alloy Structural's :

Aluminium, Copper, Brass & Gunmetal

Nickel Alloys Structural's :

Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy 904, Titanium, Tungston, SIlver Nickel, Zirconium, Palladium, Vanadium etc.

Angles :

We offer our clients a qualitative range of industrial steel angles that are manufactured in line with international quality standards. These are available in various forms and are appreciated for quality attributes such as durability, easy installation corrosion and abrasion resistance. In addition, we also customize these angles as per the specific requirements of the clients. We have been offering a wide range of Angles in various forms, such as Stainless steel flat bar, Grade: 200, 300, series, SS hot rolled flat bar and SS cold drawn flat bar to our clients. These find applications in Architectural Applications, Construction Industries, Multi-storied building, Fastening industry, Overhead cranes, Fabrication and Bridges.

Size of Angles :

• 20 mm x 20 mm x 3 mm Thk.
• 25 mm x 25 mm x 3 mm Thk.
• 25 mm x 25 mm x 5 mm Thk.
• 30 mm x 30 mm x 3 mm Thk.
• 100 mm x 100 mm x 12 mm Thk. Etc.

Features :

• Durability
• Easy to install
• Rust free
• Abrasion free.

Application Areas :

• Construction industries
• Multi-storied building
• Fastening industry
• Overhead cranes
• Architectural applications
• Fabrication
• Bridges

Channels :

are available in different lengths and thickness to serve diverse applications and are made of premium quality. These Channels are highly durable and have long lasting functional life. These steel Channels can be availed at most competitive price.

Our clients can avail an extensive range of

Channels :

which are highly demanded by our clients for quick performance, user friendly and eco-friendly features. Our products can be bent according to the desired configuration. These products are specially outsourced from the top manufacturers, and they are known for high quality, durability and resistant to corrosion. These are offered to the customers at legal prices. Our prominence in this domain has helped to come up with Stainless Steel Channels that are fabricated using sophisticated technology. We make sure that the raw materials used in preparing these channels are procured from reliable vendors. These are sturdy, durable and highly resistant to corrosion. We bend these products as per the requirements of the clients. Moreover, for maximum client satisfaction we ensure safe and timely delivery of the goods.

Application :

• Architectural application,
• metal structure,
• food industry,
• cryogenic service,
• chemical / oil industry and
• high temperature service application.

19:T3a7d,

Material	Size	End Connection	Pressure Class	Specification	Manufacturer
Stainless Steel Carbon Steel Alloy Steel Gun Metal Brass§ Bronze Forge Cast Iron Cast Steel Mild Steel	¼” to 8”	Screwed [NPT] Socket Weld Flanged End Screwed Parallel Screwed Taper	Class 150 Class 300 Class 600 Class 800 Class 1500 Class 2500	ASTM BS DIN ASA SIS	Audco Leader BHEL Spirax Klinger Lender NETA Hammer Spirax Marshall Etc.

Note:-
Stainless Steel in Grade	:	F 202 F 304 F 304L F 316 F 316L F 410 Etc.
Carbon Steel in Grade	:	ASTM A-105 LF2
Alloy Steel in Grade	:	F5 F11 F22
Check Valve Gate Valve Globe Valve Needle Valve Butterfly Valve Ball Valve Plug Valve Strainer (‘Y’) Stop Valve Non Return Valve Diaphragm ValveSafety Valve Etc. Type of Valve	:	Check Valve Gate Valve Globe Valve Needle Valve Butterfly Valve Ball Valve [Single Piece, Three Piece, Multi Port] Plug Valve 8. Strainer (‘Y’) Stop Valve Non Return Valve. Diaphragm Valve Safety Valve Pneumatic Actuators Valve Etc.
Test Certificate	:	Manufacturers Test Certificate IBR Test Certificate
Specialize	:	IBR Valves [ASTM A-105]

1a:T1bc5,

IBR Pipe :

Size : 1/2"NB TO 24"NB IN
Schedule : SCH20, SCH30, SCH40, STD, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless
Length : Single Random, Double Random & Cut Length.
End : Plain End, Beveled End, Treaded.

MATERIALS :

IBR Stainless Steel Pipes
ASTM 312 / 213 - TP 304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347

IBR Carbon Steel Pipe :

ASTM A 53, A106 Gr. B, API 5L GR.B, API 5L X 42.

IBR LTCS Pipe :

ASTM A333 Gr.6

IBR Alloy Steel Pipe :

ASTM / ASME A/SA 335 Gr. P 1, P 5, P 9, P 11, P 12, P 22, P 91
Schedule : SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless
Form : Elbow, Tee, Reducer, Cap, Stubend, Bends, Nipple etc.

Materials :

IBR Carbon Steel Fitting
ASTM A 234 WPB

IBR LTCS Fittings :

A420WPL6

IBR Alloy Steel Fitting :

ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

IBR Flanges :

Size : 1/2"NB TO 60"NB IN
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

Type :

• IBR Weld Neck (WNRF)
• IBR Â Socket Weld (SWRF)
• IBR Â Slip On (SORF)
• IBR Blind (BLRF)
• IBR Lap Joint
• IBR Screwed (Threaded)
• IBR Long Weld Neck
• IBR Reducing
• IBR Ring Joint
• IBR Orifice
• IBR Girth Flange

SPECIFICATIONS AS PER THE INTERNATIONAL STANDARD ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NA

Materials :

IBR Alloy Steel Flanges
ASTM SA 182 F1/F5/F9/F11/F22/F91

IBR Carbon Steel Flanges :

ASTMA 105 Gr. F42/46/52/56/60/65/70

IBR LTCS Flanges :

A350 LF2/A350 LF3

IBR Forged Fittings :

Size : 1/4"NB TO 4"NB IN

Class : 3000 LBS, 6000 LBS, 9000 LBS

Type :

Socket Weld (S/W) & SCREWED (SCRD) â€“ NPT, BSP, BSPT

Form :

• Tee
• Cross
• Union
• 45 Deg Elbow
• 90 Deg Elbow
• Half Coupling
• Full Coupling
• Boss
• Plug
• Cap
• Bushing
• Hex Nipple
• Swage Nipple
• Customized Fittings

Materials :

IBR Alloy Steel Forged Fitting
ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91

IBR Carbon Steel Forged Fitting :

ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70

IBR LTCS Forged Fittings :

A350 LF3/A350 LF2

IBR Outlets :

Size : 1/4"NB TO 24"NB IN

Class :

3000 LBS, 6000 LBS, 9000 LBS & Required Schedule

Type :

Socket Weld (S/W) & SCREWED (SCRD) â€“ NPT, BSP, BSPT

Outletâ€™s :

• Weldolet
• Sockolet
• Elbowlet
• Thredolet
• Nipolet
• Letrolet
• Swepolet

Material :

IBR Alloy Steel Outlet
ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91

IBR Carbon Steel Outlet :

ASTMA 105

IBR LTCS Outlet :

A350 LF2

IBR Pipe :

Size : 1/2"NB TO 24"NB IN

Schedule :

SCH20, SCH30, SCH40, STD, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type :

Seamless

Length :

Single Random, Double Random & Cut Length.

End :

Plain End, Beveled End, Treaded.

Materials :

IBR Carbon Steel Pipe
ASTM A 53, A106 Gr. B, API 5L GR.B, API 5L X 42.

IBR LTCS Pipe :

ASTM A333 Gr.6

IBR Alloy Steel Pipe :

ASTM / ASME A/SA 335 Gr. P 1, P 5, P 9, P 11, P 12, P 22, P 91

IBR Tube :

Size : 6.35mm OD upto 254mm OD in 0.6 to 20mmthk.
Schedule : In Various SWG & BWG
Type : Seamless / ERW / Welded
Length : Single Random, Double Random & Required Length.
End : Plain End, Beveled End, Treaded.

Other :

Boiler Tube
IBR Tube

Materials :

IBR Carbon Steel Tube
ASTM A 179 / A 210 Gr. A / BS 3059 Gr. 360 & 440.

IBR Alloy Steel Tube :

ASTM / ASME A/SA 213 Gr. T 1, T 5, T 9, T 11, T 12, T 22, T 91

IBR Bars :

IBR Alloy Steel Bar
ASTM SA 182 F1/F5/F9/F11/F22/F91

IBR Carbon Steel Bar :

ASTMA 105

IBR LTCS Bar :

A350 LF2/A350 LF3

Test Certificate :

IBR FORM III C, FORM III A, III D Test Certificate

1b:Ta80,

1c:T9aaa,

Nominal Diameter		Outside Diameter at Bevel		Center to End			Center to Center		Back to Face
				45°Elbow	90°Elbow		180°Elbow
				B	A		O		K
DN	NPS	Series A	Series B	Long Radius	Long Radius	Short Radius	Long Radius	Short Radius	Long Radius	Short Radius
15	1/2	21.3	18	16	38	-	76	-	48	-
20	3/4	26.9	25	19	38	-	76	-	51	-
25	1	33.7	32	22	38	25	76	51	56	41
32	1.1/4	42.4	38	25	48	32	95	64	70	52
40	1.1/2	48.3	45	29	57	38	114	76	83	62
50	2	60.3	57	35	76	51	152	102	106	81
65	2.1/2	76.1(73)	76	44	95	64	190	127	132	100
80	3	88.9	89	51	114	76	229	152	159	121
90	3.1/2	101.6	-	57	133	89	267	178	184	140
100	4	114.3	108	64	152	102	305	203	210	159
125	5	139.7	133	79	190	127	381	254	262	197
150	6	168.3	159	95	229	152	457	305	313	237
200	8	219.1	219	127	305	203	610	406	414	313
250	10	273.0	273	159	381	254	762	508	518	391
300	12	323.9	325	190	457	305	914	610	619	467
350	14	355.6	377	222	533	356	1067	711	711	533
400	16	406.4	426	254	610	406	1219	813	813	610
450	18	457.2	478	286	686	457	1372	914	914	686
500	20	508.0	529	318	762	508	1524	1016	1016	762
550	22	559	-	343	838	559	1676	1118	1118	838
600	24	610	630	381	914	610	1829	1219	1219	914
650	26	660	-	406	991	660	1982	1320	-	-
700	28	711	720	438	1067	711	2134	1422	-	-
750	30	762	-	470	1143	762	2286	1524	-	-
800	32	813	820	502	1219	813	2438	1626	-	-
850	34	864	-	533	1295	864	2590	1728	-	-
900	36	914	920	565	1372	914	2744	1828	-	-
950	38	965	-	600	1448	965	2896	1930	-	-
1000	40	1016	1020	632	1524	1016	3048	2032	-	-
1050	42	1067	-	660	1600	1067	3200	2134	-	-
1100	44	1118	1120	695	1676	1118	3352	2236	-	-
1150	46	1168	-	727	1753	1168	3506	2336	-	-
1200	48	1220	1220	759	1829	1219	3658	2440	-	-

Technical Info

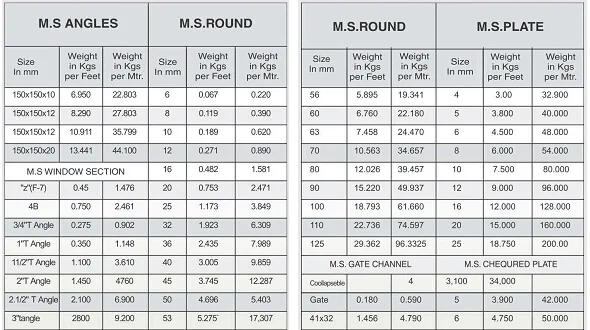

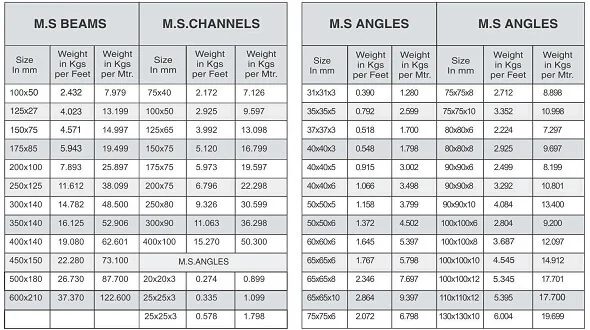

Angles,Channels and Beam

Metal Weight Calculator
